Cybex

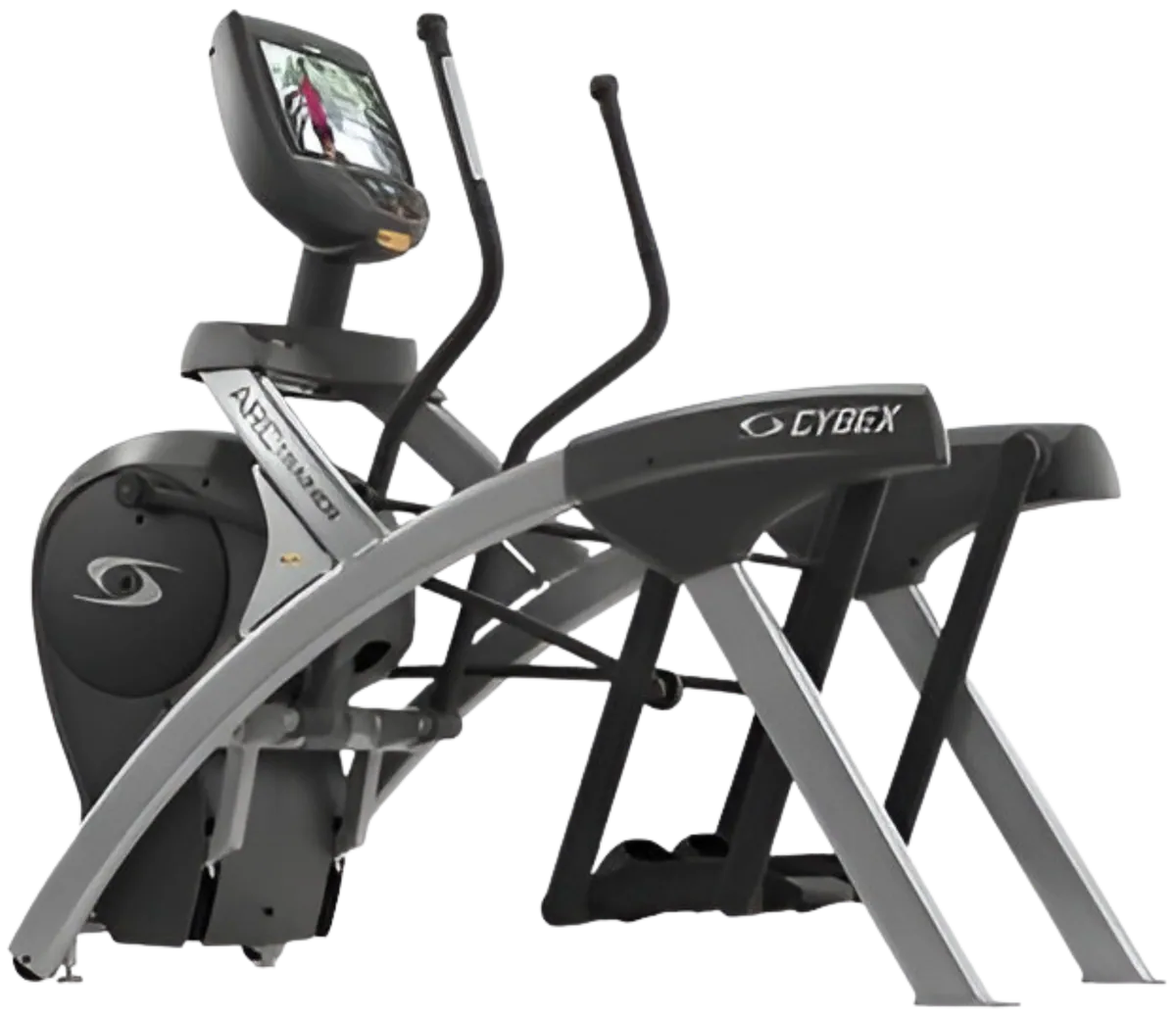

Cybex 625AT Arc Trainer w/ E3 Console (Remanufactured)

SKU: 625AT
  • ConditionRemanufacturedWhat is remanufactured?
  • Warranty1 Year Parts & Labor Warranty · details
  • ShipsFree liftgate freight to the continental United States · white-glove install $350 per machine
  • Handling & delivery1–3 business days handling · arrives in 4–10 business days
  • DeliveryFree Shipping (continental US)

$3,499

Financing from $97/mo— learn more

In stock

Order Now
  • Delivery & installation
  • Financing available
  • Warranty included
  • Expert support

Call +1 (786) 548-6624 for volume pricing.

Brand
Cybex
Condition
Remanufactured
SKU
625AT
Weight
175 lb

Not all cross trainers are created equal. With the Cybex 625AT Arc Trainer you get more results in less time. Research shows that the Cybex Arc Trainer burns more calories than any other cross trainer or elliptical cross trainer tested. The science behind the Arc Trainer’s big calorie burn is the Arc motion. It engages the right muscles ’ quads and glutes ’ that demand lots of energy from the body when they are called upon to work. That means big calorie burn. And ... because the Arc is demanding of the muscles - not the joints, it can be used longer without putting a strain on the knees, hip or back. Train for strength, power, endurance, cardio, and weight loss. The Cybex Arc Trainer offers broad incline and resistance ranges which mean it is really 3 machines in one. At the lower incline levels, the ’glide’ is a cross country skier. In the mid-range levels, the motion is a ’stride’ (like an elliptical except with proper positioning). At the high levels, the ’climb’ of a stepper or climber. Glide, Stride, and Climb. And ... lots of programs also make the Arc Trainer fun to use. And no more ’elliptical knees’. Unlike other cross trainers on the market the patented Arc pattern of motion allows the hip and knee to move synchronously while the foot stays under the knee reducing joint pains and providing a more comfortable workout.

Having trouble deciding which model is right for you? Check out our easy to read Cybex Arc Trainer Comparison Chart!

Features

  • Color: White frame with black trim

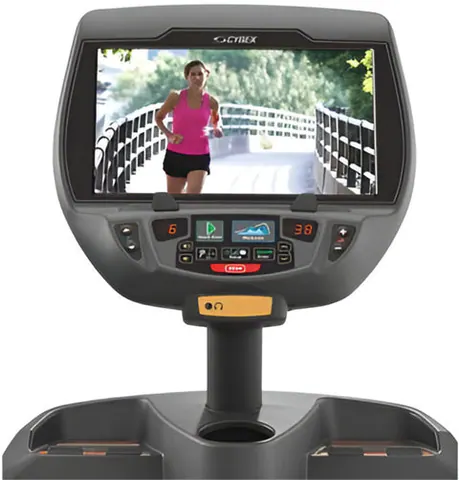

  • Embedded HD TV: E3 Console
  • Screen Type: LCD
  • Screen Size: 15.6"
  • Aspect Ratio: 16:9
  • Resolution: 1366 X 768
  • Brightness: 300 Nits (typical)
  • Contrast Ratio: 500:1
  • Displayable Colors: 16.7M
  • Response Time: 8ms (typical)
  • Tuner Type: ATSC/NTSC, DVB-T/PAL/SECAM
  • Display Modes: Full screen video, video with exercise data, full screen exercise data, blank screen
  • Closed Captioning: CC1, CC2, Text1, Text2
  • Workouts: Quick Start, Manual, three Weight Loss, three Cardio, two Strength and Heart Rate Control. Programs have 10 levels and control both incline and resistance.
  • Compliance: ETL listed to UL 1647, FCC Class B, ASTM, EN 957, CE Low Voltage Directive, EMC and ROHS
  • Convenience Features: Split level display with magazine rack. Centrally located water bottle holder and dual utility trays.
  • Heart Rate Monitoring: Contact and wireless. HR light indicator is multi colored with different color light for specific target heart rate zones
  • Color: Gray shrouds with choice of five standard frame colors (white, black, platinum sparkle, metal tone gold, black chrome) or choose from over 180 custom colors
  • Incline Levels: 21
  • Stride Length: 24in
  • Resistance Range: up to 900 Watts
  • Drive type: Two-stage drive
  • Brake: Brushless Eddy current brake with generator
  • Numeric display of time distance, calories, calories/hour, METs, watts, strides per minute and heart rate including multi-color indication of heart rate range. Lower display shows time. incline and resistance level.
  • Languages: 10 languages (English, French, German, Spanish, Japanese, Russian, Swedish, Danish, Dutch, Canadian English)
  • Manufacturer's Warranty: 10 yr - frame, 3 yr - parts, 1 yr - labor
  • Power: 110V Cord (Included)

Tech specs

  • Ceiling Height Requirement (625at) = 14-15" + Height of Tallest User (If Tallest User = 6'0", THEN 7'3" Ceiling Height Required)
  • Max User Weight: 400 lbs
  • Weight: 412 lbs
  • Dimensions: 76" L x 32" W x 62.5" H

Warranty

  • 1 Year Parts & Labor Warranty Standard
  • Extended Warranty Options up to 5 Years Parts & Labor Available: See Product Warranty Options for Pricing

The Twister Gym Bus promise

Every unit we ship is covered: 1 Year Parts & Labor Warranty. Remanufactured equipment is rebuilt to factory spec by our technicians, tested under load and backed by Twister Gym Bus — extended coverage up to 5 years parts and labor is available at checkout.

Read the full Twister Gym Bus warranty terms →

Commercial gym equipment ships by palletized liftgate freight, not parcel — and standard freight is free to any address in the continental United States.

Delivery options

  • Standard liftgate freight — free. The carrier lowers the crate to your curb, garage or loading dock with a liftgate; you move the equipment inside.
  • White-glove delivery & installation — $350 per machine. Our crew places, assembles, levels and tests the equipment, then removes all packaging.
  • Warehouse pickup — free from our Boca Raton, FL warehouse.

Handling & transit

Orders are handled in 1–3 business days and spend 3–7 business days in transit, so equipment typically arrives within 4–10 business days. Orders placed before1:00 PM ET on a business day enter the same-day handling queue. Custom powder-coat or upholstery finishes add lead time, confirmed before dispatch. You'll receive tracking and a scheduled delivery window once your equipment ships.

Title and risk pass to you on delivery. Inspect the crate and note any damage on the driver's receipt before signing, then email photos within 24 hours. Undamaged equipment can be returned within 30 days — see Returns & Refunds.

Full shipping & delivery details →
